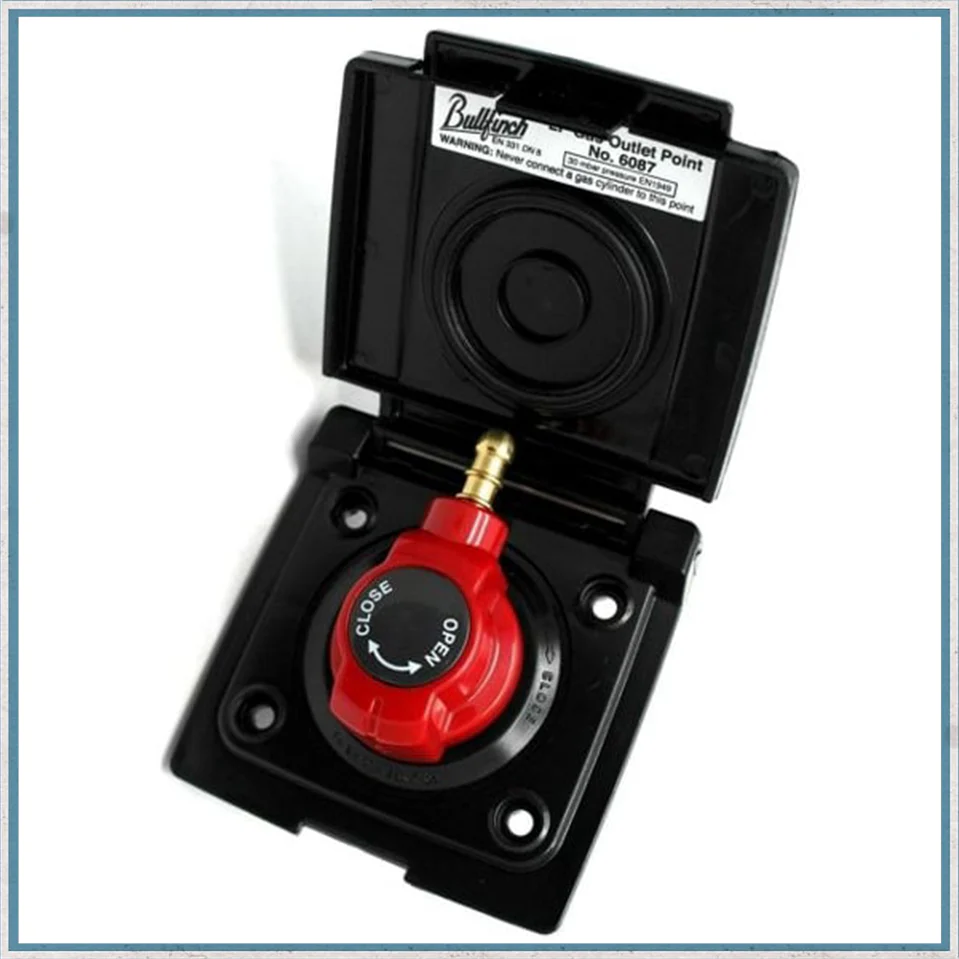

This gas point offers a great solution for supplying barbecues, cooking appliances, patio hearers and other appliances for LPG (propane and butane) from the units existing supply.

Please note that a gas cylinder should never be connected to the Gas point from the outside of the campervan, caravan or motorhome.

Technical Details:

• Working pressure – 7 bar (max)
• Conforms to BS EN 331 and BS EN 1949 and made under a certified ISO9001 system
• Corrosion-resistant materials, LPG compatible
• Plastic parts made of high quality materials with long-term UV resistance
• Total sealing between device and wall of prefabricated structure
• Total sealing between cap and connection device
• Double gasket for optimal long-term safety

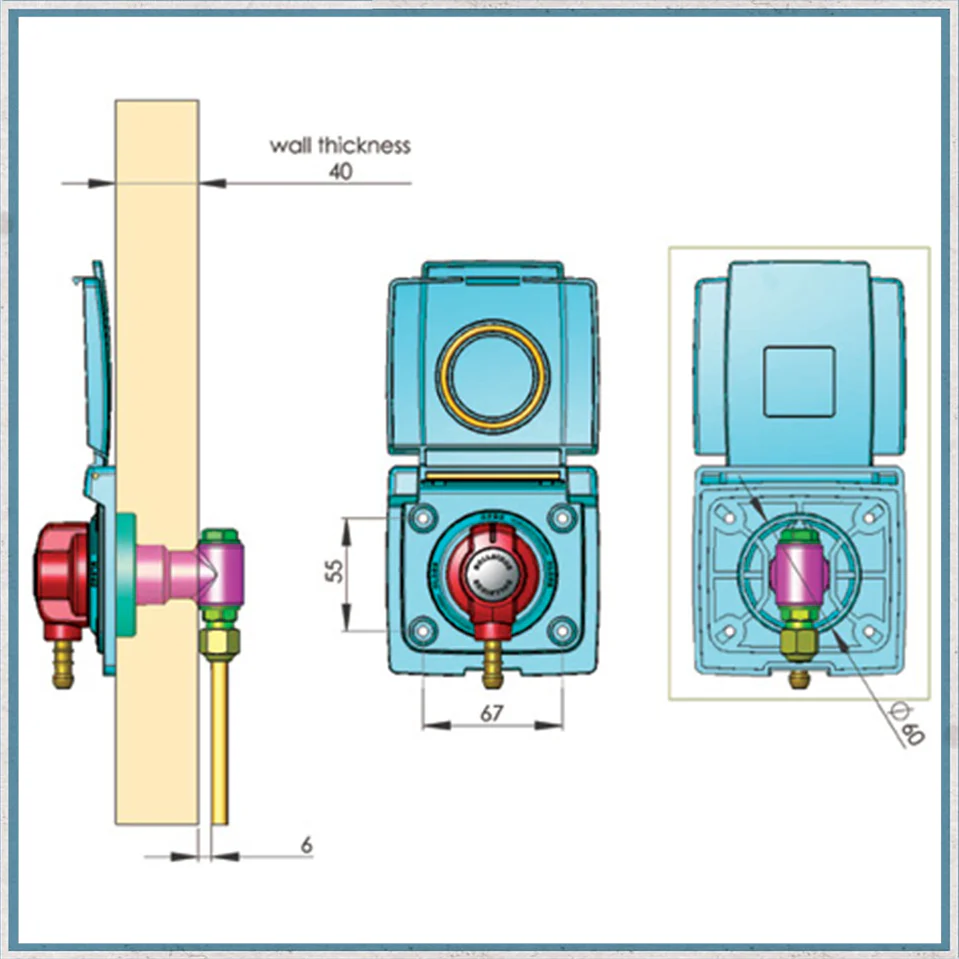

• Dimensions – 105 x 110 x 85 (deep) mm
• Body - Hot forged brass alloy CW617
• Ball valve + flare - Chrome/nickel plated brass alloy CW614
• Additional brass parts - Brass alloy CW614
• Plastic unit and cap - Polycarbonate reinforced with glass fibre
• Lever handle - ABS (Acrylonitrile Butadiene Styrene) – UV stable
• Hinges, springs and screws - stainless steel
• Rubber gaskets - NBR conforming to EN549 standard
• Wall gaskets and cap gaskets – UV, ozone resistant EPDM
• Ball valve seals: - PTFE
