Campervan 24 Litre Wheel Arch Water Tank

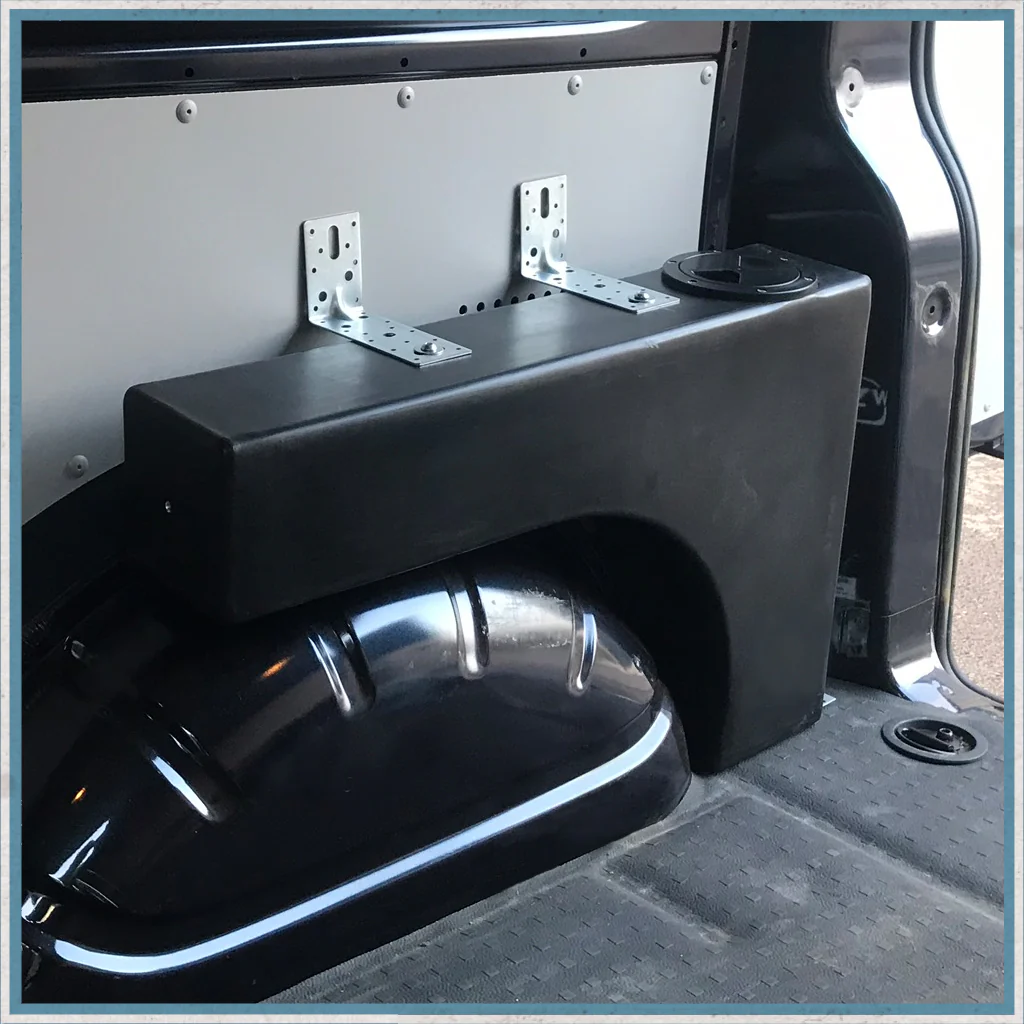

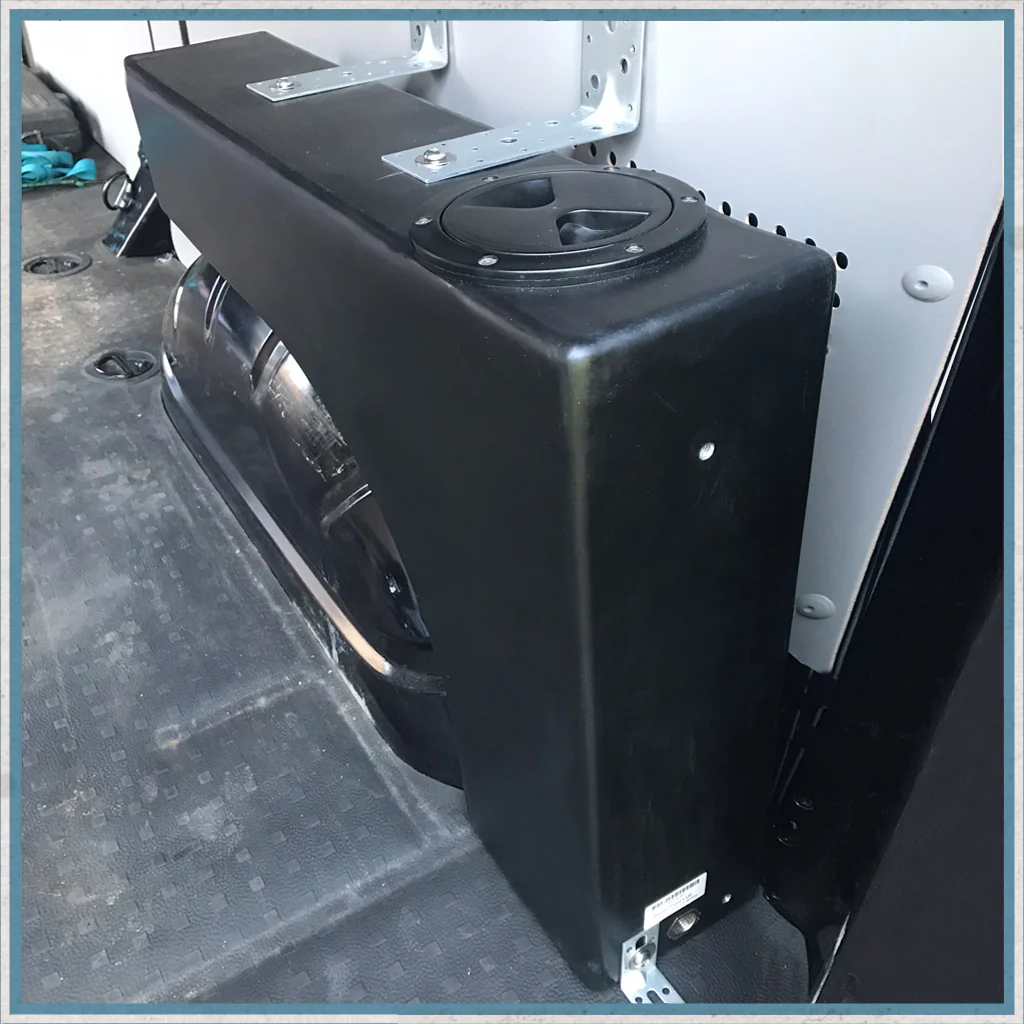

This UK made fresh water tank has been designed to fit over the wheel arch in the rear of a VW T5/T6 van, but it will fit many other vans, making it ideal for camper conversions.

This 24 litre capacity tank has 6 x M8 inserts moulded into the tank for easy mounting. If you require a larger tank there is also a 57 litre version available.

Please note this tank has an 1/2" BSP outlet opening at the bottom of the tank. If you don't plan to plumb an outlet pipe to it you'll need to purchase a 1/2" BSP bung from a plumbing merchant.

There are also a range of kits available to ensure the tank is quick and easy to install, including a plumbing kit (now with a 40mm inlet connection), fitting kit and a submersible pump lid kit, which can all be selected from the drop down menus.

There is also a larger 57 Litre version of this tank, which is wider, but designed to still fit within a cabinet and still allow space for a 3/4 width bed within a VW T5 sized conversion.



See also our lockable water filler inlets and the corresponding 40mm water filler hose



Specifications:

The separate kits are as follows:

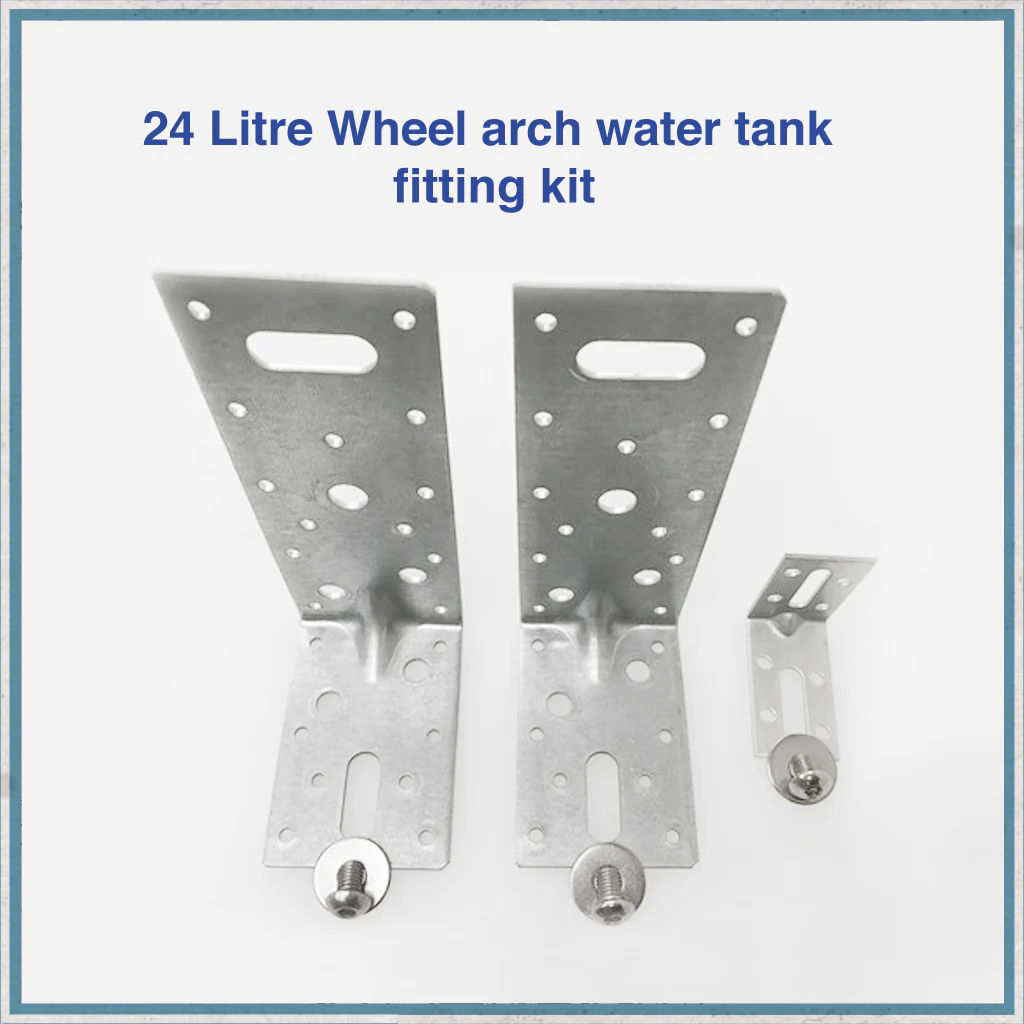

 24 Litre Fitting Kit:

• 3 x M8 x 12mm socket button head
• 3 x M8 x 25mm washer
• 1 x 50mm x 55mm x 30mm angle bracket
• 2 x 150mm x 90mm x 60mm angle bracket



Submersible Pump Lid Kit:

This kit can be used to allow a submersible pump to be connected through the lid.

Contents:

• 1 x ½” BSP 90° bulkhead hose tail 11-13mm
• 1 x ½” BSP back nut
• 1 x ½” BSP gasket
• 1 x cable gland



Plumbing Kit:

This kit has all the fittings required for the outlet, inlet and vent hoses.

Contents:

• Includes 1 x 90° x 40mm Filler (Complete)
• 2 x Vent Hose Tail: (½ inch)
• 2 x Back Nut (½ inch)
• 2 x Washer/Gasket (½ inch)
• 1 x Vent (½ inch) - this is included without a washer/gasket or backing nut, as some other water tanks have a pre-fitted threaded insert in the tanks.
