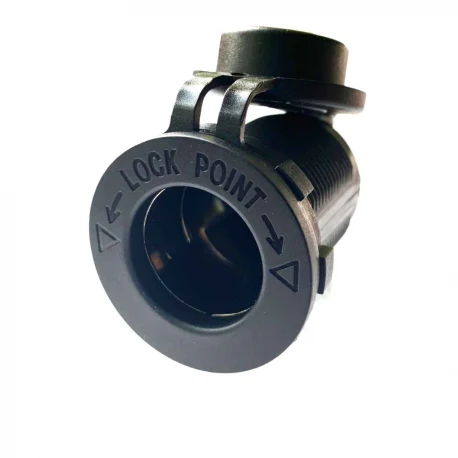

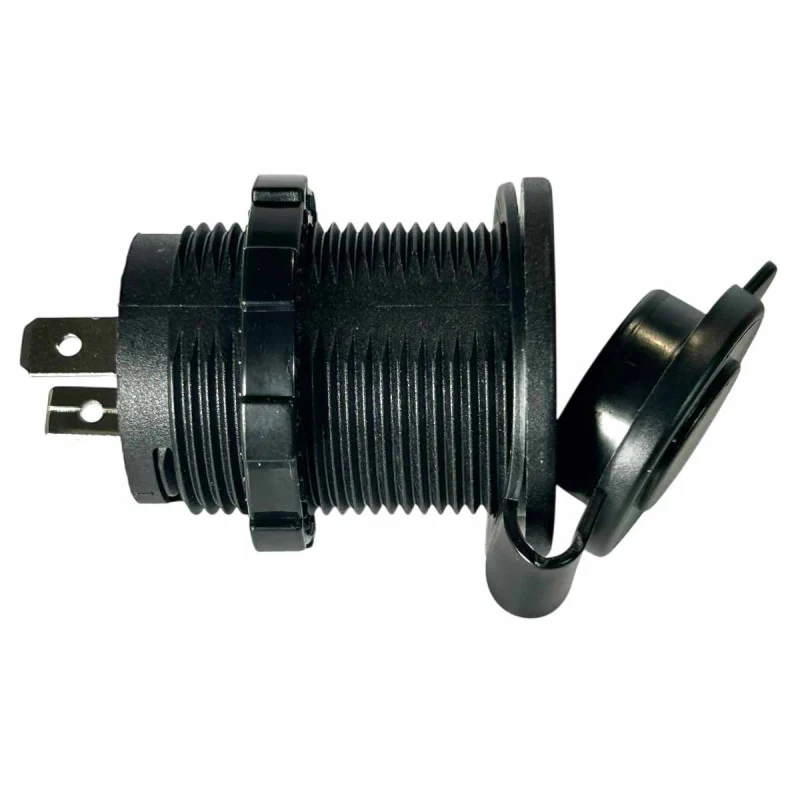

Waterproof 12V and 24V Power Socket

Dual-voltage 12V/24V power socket designed for Camper Vans, Motorhomes and marine applications. This cigar/cigarette-style outlet delivers reliable power for new installations with a 20A rating at 12Vdc. Includes a waterproof sealing cover to shield against moisture and water ingress, making it ideal for exposed or wet environments. Features SeaLink locking system for secure connections and accepts standard CLA plugs. RoHS compliant for environmental responsibility.

Specifications

• Voltage: 12V and 24V
• Type: Cigar/Cigarette Socket (Automotive Power Outlet)
• Configuration: Female
• Current Rating: 20A at 12Vdc
• Wire Gauge: 12AWG
• Waterproof Cover: Yes, with 12V/24V marking
• Locking System: SeaLink
• Plug Compatibility: Fits 21mm diameter plugs
• Panel Cut-Out: 29mm diameter & 26.3mm D flat (x2)
• Terminal Type: 6.35mm tab terminals
• Compliance: RoHS
